TCP/IP model

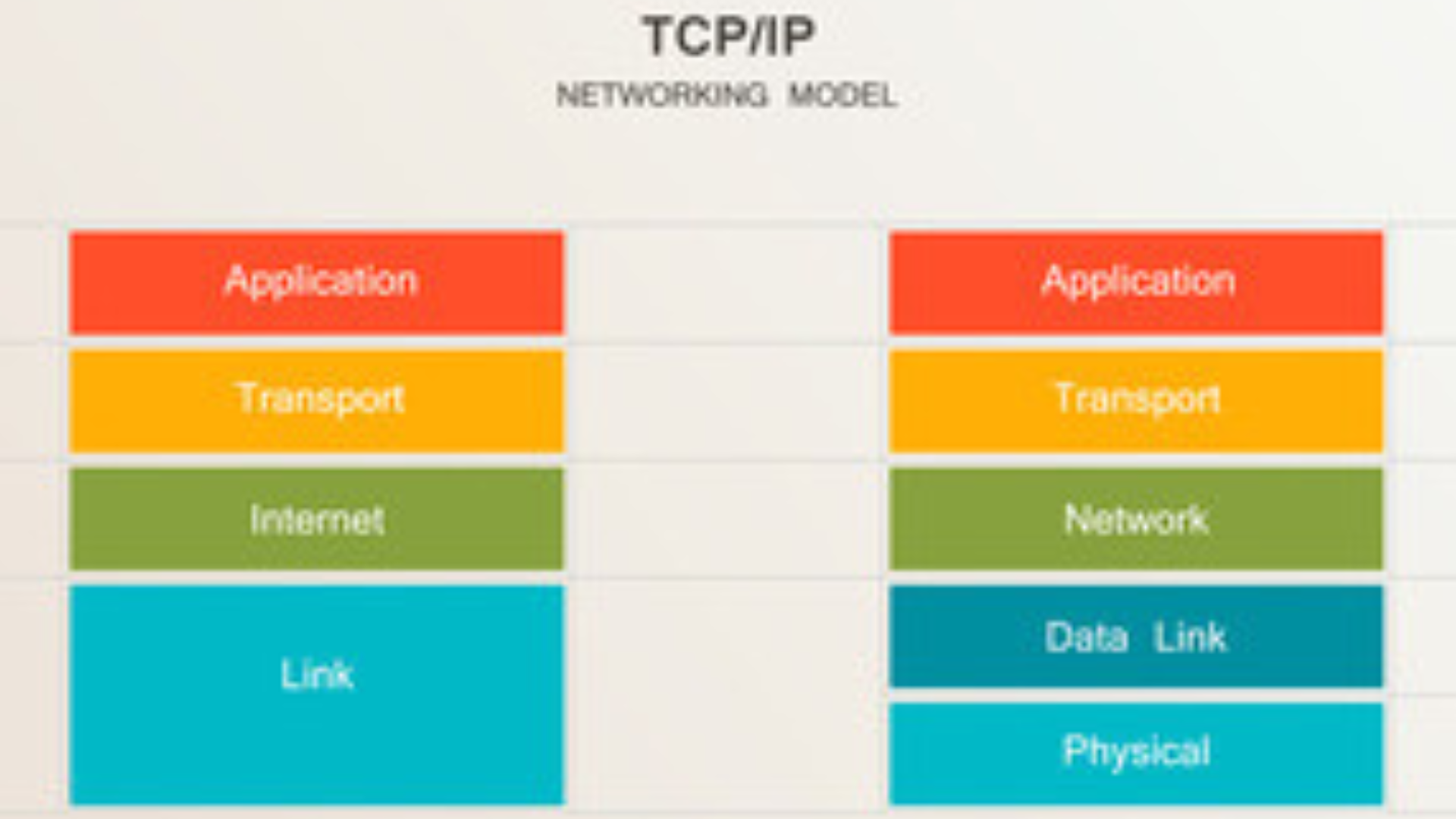

The TCP/IP model

The TCP/IP model is a conceptual framework used for understanding and implementing network protocols. It stands for Transmission Control Protocol/Internet Protocol and is the foundation of the Internet and most modern computer networks. The TCP/IP model consists of four layers, each responsible for specific aspects of network communication:

1-Application Layer

• The Application Layer is the topmost layer in the TCP/IP model, responsible for providing network services directly to end-users and applications.
• It encompasses various protocols that facilitate communication and data exchange between applications running on different hosts.
• Protocols include:

1. HTTP (Hypertext Transfer Protocol) for web browsing.
2. FTP (File Transfer Protocol) for file transfer.
3. SMTP (Simple Mail Transfer Protocol) for email transmission.
4. DNS (Domain Name System) for domain name resolution.
5. DHCP (Dynamic Host Configuration Protocol) for automatic IP address assignment.
6. SNMP (Simple Network Management Protocol) for network management.

2-Transport Layer

• The Transport Layer ensures reliable end-to-end communication between source and destination hosts.
• It manages data segmentation, reassembly, flow control, and error recovery mechanisms.
• Two primary protocols operate at this layer:

1. TCP (Transmission Control Protocol): Provides reliable, connection-oriented communication with features such as sequencing, acknowledgment, flow control, and error detection/retransmission. It's used for applications that require guaranteed delivery of data, such as web browsing, email, and file transfer.
2. UDP (User Datagram Protocol): Offers connectionless communication with minimal overhead. It's used for applications that prioritize speed over reliability, such as real-time streaming, VoIP (Voice over Internet Protocol), and online gaming.

3-Internet Layer

• The Internet Layer is responsible for addressing, routing, and forwarding packets between different networks.
• It uses logical addressing (IP addresses) to identify hosts and routers on the network.
• The primary protocol at this layer is the Internet Protocol (IP), which defines packet formats, addressing schemes (IPv4 and IPv6), and routing algorithms.
• IP packets are routed based on destination IP addresses, and routers make forwarding decisions to ensure data reaches its destination across interconnected networks.

1. 4-Link Layer

• The Link Layer, also known as the Network Access Layer, is responsible for the physical transmission of data within the local network segment.
• It encompasses protocols and technologies that define how data is framed, transmitted, and received over the physical medium.
• Examples of link layer protocols and technologies include Ethernet (IEEE 802.3), Wi-Fi (IEEE 802.11), PPP (Point-to-Point Protocol), ATM (Asynchronous Transfer Mode), and DSL (Digital Subscriber Line).
• At this layer, data is encapsulated into frames, and devices are identified using physical addresses (e.g., MAC addresses).

The TCP/IP model is widely used because it closely reflects the structure and functionality of the Internet. It consists of fewer layers compared to the OSI model, making it simpler to understand and implement. However, both models serve as important frameworks for designing and troubleshooting network architectures and protocols.



OSI Model

1- Layers: The OSI model consists of seven layers: Physical, Data Link, Network, Transport, Session, Presentation, and Application.

2- Scope: It's a conceptual model that standardizes the functions of a telecommunication or computing system.

3- Development: Developed by the International Organization for Standardization (ISO) in the 1980s.

4- Usage: While not as commonly used in practice as the TCP/IP model, it provides a structured approach to understanding network communication and is often used as a reference model.

5- Encapsulation: Each layer adds its own header (and sometimes trailer) to the data received from the layer above before passing it down to the next lower layer.

TCP/IP Model

1. 1-Layers: The TCP/IP model consists of four layers: Application, Transport, Internet, and Link.
2.

3. 2-Scope: It's a protocol suite used for communication over the Internet and most modern networks.
4.

5. 3-Development: Developed by the Department of Defense (DoD) in the 1970s for ARPANET, the precursor to the modern Internet.
6.

7. 4-Usage: Widely used in practice and closely mirrors the actual architecture and operation of the Internet.
8.

9. 5-Encapsulation: Data is encapsulated into packets at each layer, with headers added at the beginning of the data as it moves down the stack, and stripped off as it moves up.

Comparison:

1. Number of Layers: The OSI model has seven layers, while the TCP/IP model has four layers. The layers in the TCP/IP model are more closely aligned with actual network functionality, making it simpler and more practical for implementation.
2. Layer Names: The layer names and functionalities are somewhat similar between the two models, but there are differences in the way they are organized and the terminology used.
3. Encapsulation: Both models involve encapsulation of data as it moves down the stack, but the specific protocols and terminology differ between the two models.
4. Development and Usage: The OSI model was developed later and is more of a theoretical framework, while the TCP/IP model was developed earlier and is used extensively in practice, particularly in the context of the Internet.
